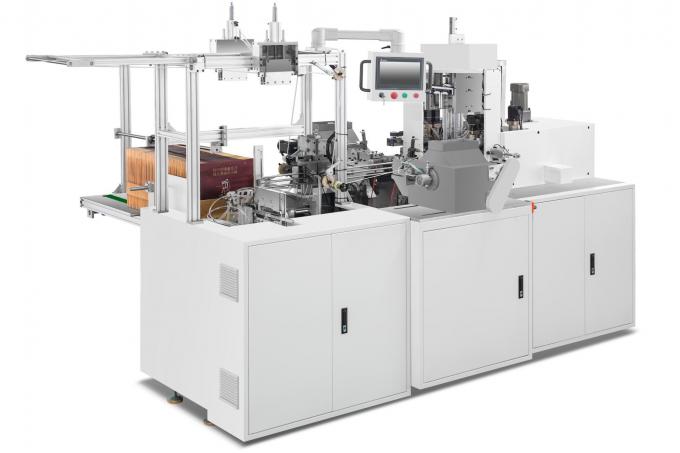

Name: PRY-450A Paper Bag Rope Insertion Machine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-450A
Price: 26000 USD
Availability: InStock

PRY-450A Paper Bag Rope Insertion Machine

Podstawowe informacje

Place of Origin:	China
Nazwa handlowa:	PRINTYOUNG
Orzecznictwo:	CE
Model Number:	PRY-450A

Minimum Order Quantity:	1 Set
Cena:	US 26000 Set
Packaging Details:	Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	30 Set/Sets per Month

Skontaktuj się teraz

Model:

PRY-450A

Bag Surface Width:

180 ~ 450 mm

Bag Surface Height:

180 ~ 450 mm

Paper Weight:

160 ~ 300 gsm

Paper Bag Hole Distance:

75 ~ 150 mm

Rope Length:

320 ~ 450 mm

Production Speed:

35 ~ 45 pcs/min

Machine Size:

2800 * 1350 * 2200 mm

Machine Weight:

2700 kg

Total Power:

12 kw

PRY-450A Paper Bag Rope Insertion Machine

Features

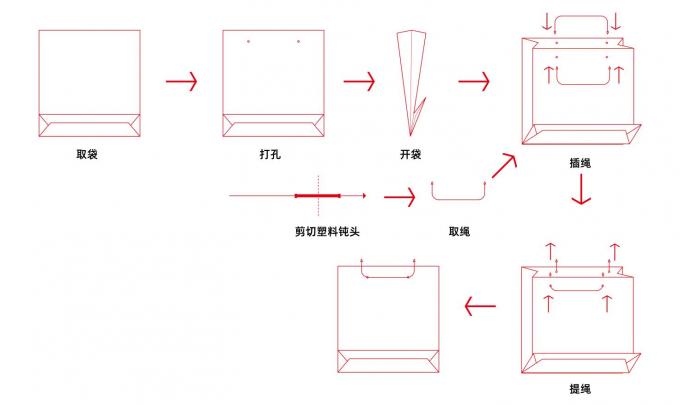

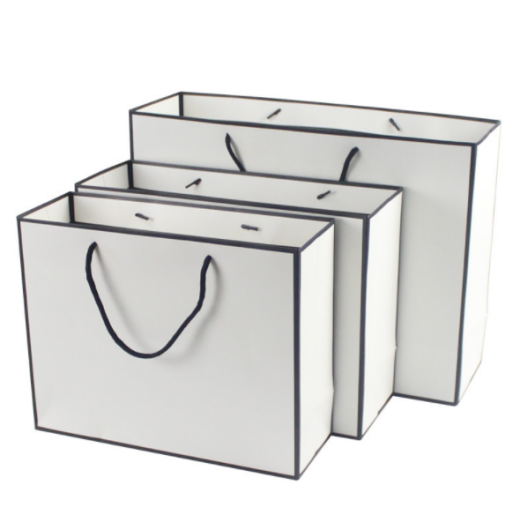

Handbag rope insertion machine:automatic bag feeding,non-stop bag reloading,rope wrapping plastic sheet,automatic rope insertion,counting and receiving bags,automatic alarm and other functions.
The punching position can be adjusted according to the bag,and the rope is suitable for three-strand rope,cotton rope,elastic rope,ribbon rope,etc.After inserting into the bag,the length of the rope can be adjusted.
The equipment perfectly combines the traditional rope-wrapped plastic sheet and rope threading,which reduces production costs and improves production efficiency.

Technical Parameters

PRY-450A Paper Bag Rope Insertion Machine
Model	PRY-450A
Bag Surface Width	180 ~ 450 mm
Bag Surface Height	180 ~ 450 mm
Paper Weight	160 ~ 300 gsm
Paper Bag Hole Distance	75 ~ 150 mm
Rope Length	320 ~ 450 mm
Bag Pull Cord	The length of the rope can be adjusted accordingto the matching of the bag and the rope
Production Speed	35 ~ 45 pcs/min
Machine Size	2800 * 1350 * 2200 mm
Machine Weight	2700 kg
Total Power	12 kw

Configuration

Rope Threading Machine Product Paper Bag Feeding System

In the case that the machine does not stop,it can realize uninterrupted feeding and improve the production efficiency of the machine.

Vacuum Bag Take System

Using the vacuum principle,the suction nozzle is attached to the paper bag to absorb the paper bag.And put the paper bag into the transfer station.Put its paper bag into the punching station.

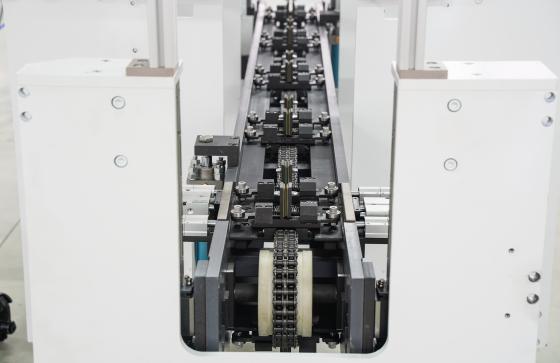

Chain Transfer Station

The rotation of the gear is controlled by the motor to drive the chain,so that the station rotates.

Paper Bag Punching System

It is conveyed by the chain to the punching station,and the inductive switch detects the position of the bag.cylinder drives the needle rod to punch the bag.

Wrist Plastic Buckle Hemming

The cam is driven by the private server motor to drive the mold,and the paper bag is punched and the wrist plastic sheet is rolled at the same time.

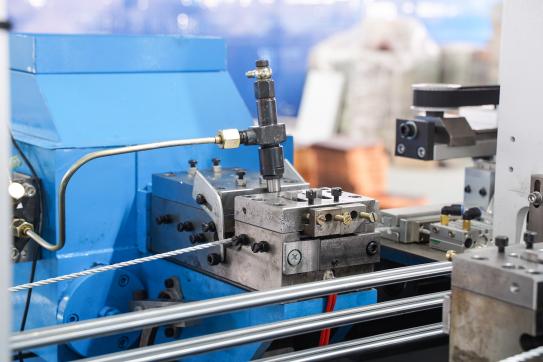

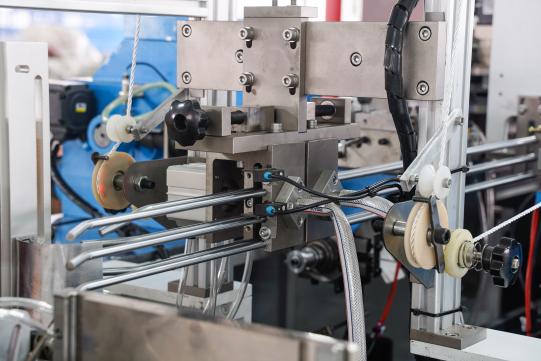

Rope Take and Cut Module

The wrist rope wrapped with plastic sheet will be clamped by the rope clamping cylinder and pulled to the required length.And push the scissors to cut.

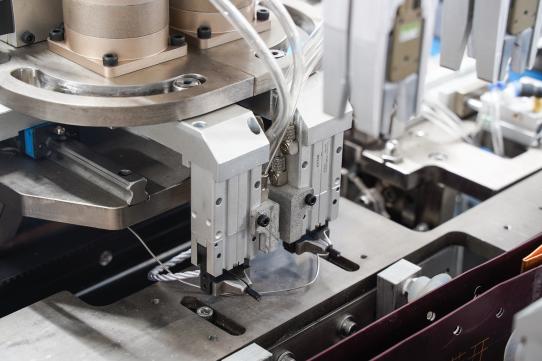

Rope Insertion Module

Hand the trimmed rope to the insert rope module.The cord clip will pick up the plastic pieces at both ends.Insert the punched position of the paper bag.

Extract Rope Clip

Increase the rope insertion depth. Re-insertion of the rope is to move the rope up and down through the private server motor to extract the rope into the bag.
